Metal Roofing & Siding

Features:

  • Cut-to-length metal panels
  • Structural 3” standing-seam roof panels — 16” widths and 24-gauge Galvalume® steel - Span up to 10'
  • 36”-wide roof panels, 26- or 29-gauge, pre-painted or galvanized steel
  • Vertical interlocking partition walls

PANEL OPTIONS:

316 PANEL: The Ultimate Roof Panel

316 panel

  • Standing-seam 3″ high panel
  • Two secondary tension ribs per panel
  • 16″ wide, cut to any length
  • Strong, virtually maintenance-free
  • Concealed clips
  • Available in 24-gauge steel
  • 25-year warranty for non-painted panels
  • 40-year warranty for pre-painted panels
  • Structural panels

View specifications sheet

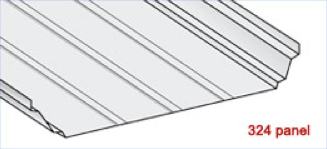

324 PANEL: Trapezoidal Self-locking Standing-seam Roof Panel

324 panel

  • 3” trapezoidal self-locking, standing-seam roof panel
  • 18” and 24” widths
  • 24-gauge Galvalume® steel
  • Can be installed over open structural framing or solid surface
  • 25-year warranty for non-painted panels
  • 40-year warranty for pre-painted panels

View specifications sheet

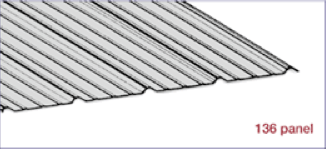

136 PANEL: Roof and Siding Applications for Agricultural, Commercial or Residential Buildings

136 panel

  • 36″wide unsurpassed structural strength
  • 29-gauge steel available in a variety of colors
  • Cut to any length
  • Five 3/4″ main ribs and three secondary ribs per panel
  • Compatible trim and accessories available
  • 40-year warranty on all pre-painted panels

View specifications sheet

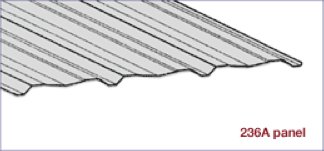

236A Wall Panel: Excellent Wall Panel for Commercial and Industrial Buildings

236a panel

  • 36″ coverage wall panel
  • 26-gauge steel in a variety of colors
  • Cut to any length
  • 1-1/4″ deep ribs 12″ on center
  • Vertical application eliminates dust collection
  • Compatible trim and accessories available
  • 40-year warranty on all pre-painted panels

View specifications sheet

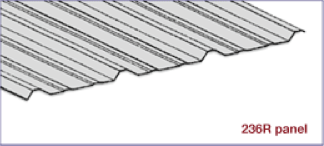

236R Roof & Siding Panel

236r-panel

  • 36″ coverage panel
  • 26-gauge steel in a variety of colors
  • Optional 29-gauge G90 Galvanized pre-painted
  • Cut to any length
  • 1-1/4″ deep ribs 12″ on center
  • Compatible trim and accessories available
  • 25-year warranty
  • 40-year warranty on all pre-painted panels

View specifications sheet

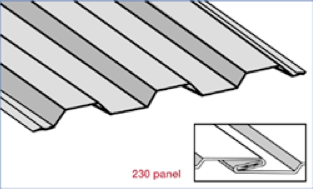

230 High Security Panel: Durable, Good Looking and Priced to Sell for Walls and Partitions

230-panel

  • High-security, unique, interlocking joint design
  • Structural strength
  • 30″ wide with 1-1/4″ deep rib sections
  • No costly substructure
  • 28-gauge galvanized steel (available pre-painted)
  • Vertical application eliminating dust
  • 20-year warranty

View specifications sheet



U Panels

u-panels

  • 36" wide
  • 26 or 29 ga
  • ¾" rib height
  • Vertical or horizontal install
  • Modern design
  • Liner panel or partition
  • Cut to length

View specifications sheet
